Why OAuth2

Microsoft is retiring SMTP AUTH Basic Authentication for Exchange Online. After the cut-off, mailboxes that still rely on a username + password against smtp.office365.com will be rejected with 535 5.7.3 Authentication unsuccessful. The same direction applies to Gmail, which already enforces OAuth2 for personal accounts.

OAuth2 replaces the stored password with a short-lived access token that DataPallas mints fresh from a long-lived refresh token every time it sends mail. The refresh token is stored encrypted on disk; the access token only lives in memory for the few seconds the SMTP transaction takes.

Where OAuth2 is Available

From the top menu open Reports, Connections & Cubes, then in the left sidebar click Connections and create (or edit) an email connection.

Microsoft Office 365 — Step by Step

Step 1 — Register an Azure AD app

In the Azure portal under Microsoft Entra ID → App registrations → New registration:

• Name: anything you like (e.g. DataPallas SMTP)
• Supported account types: Accounts in this organizational directory only (single tenant)
• Redirect URI: leave empty here — DataPallas registers a one-shot loopback URI (http://127.0.0.1:<random>/callback) at sign-in time
• After creation, open Authentication and set Allow public client flows to Yes
• Open API permissions → Add a permission → Microsoft Graph → Delegated → SMTP.Send, then click Grant admin consent

From the app's Overview page, copy the Application (client) ID and the Directory (tenant) ID.

If your tenant administrator has disabled SMTP AUTH at the org or mailbox level, OAuth2 still won't work — that policy is independent of the auth mechanism. Re-enable SMTP AUTH for the sending mailbox before continuing.

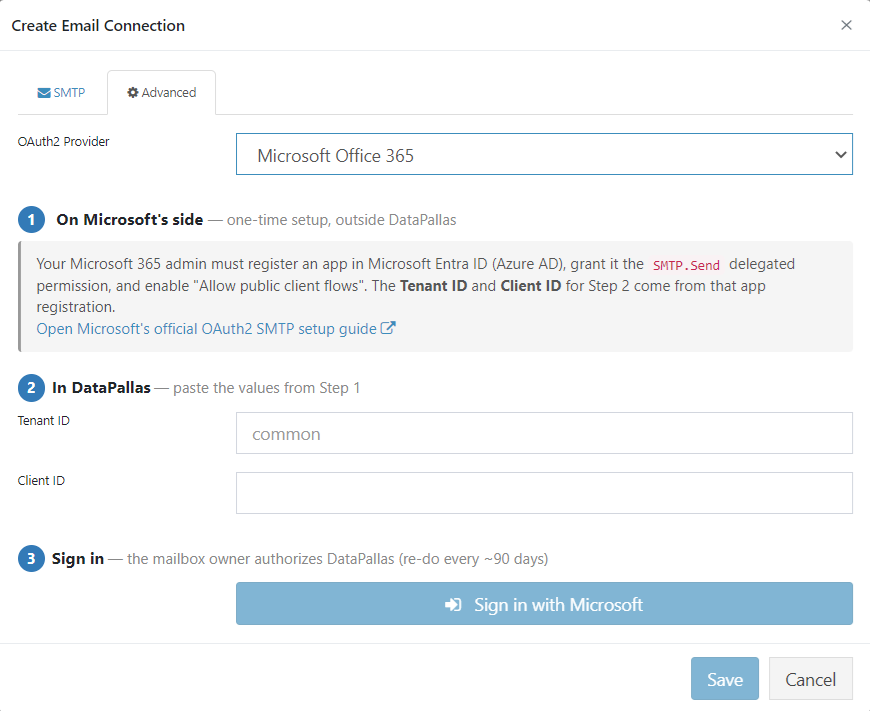

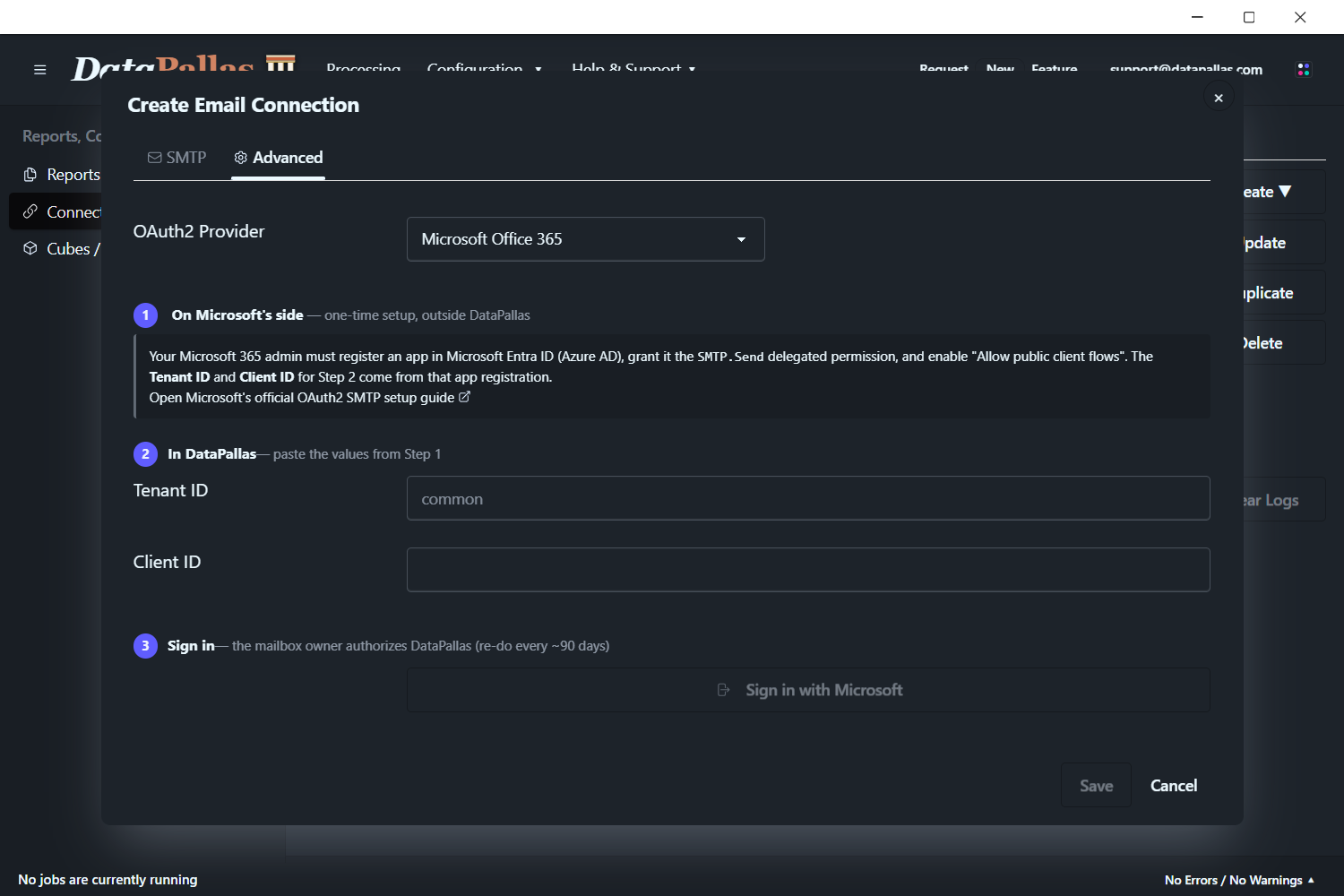

Step 2 — Configure the email connection in DataPallas

Open the email connection's Advanced tab. Then:

1. Fill the standard SMTP fields on the SMTP tab (smtp.office365.com, port 587, TLS on, your From Name and From Address).
2. On the Advanced tab, choose OAuth2 Provider → Microsoft.
3. Paste the Tenant ID and Client ID copied from Azure.
4. Click Sign in with Microsoft.

DataPallas opens your default browser at the Microsoft sign-in page. Sign in with the mailbox you want to send from, accept the consent prompt, and the browser tab closes itself. The refresh token is automatically saved (encrypted) into the connection — you'll see a green Connected as <your-mailbox> confirmation.

Step 3 — Test and save

Click Send Test Email to verify the full SMTP + XOAUTH2 round-trip against the real Microsoft endpoint. Then click Save to finalize the connection. The refresh token is persisted as <oauth2refreshtoken>ENC(...)</oauth2refreshtoken> in the connection XML — the plaintext is never written to disk and never returned to the browser.

From this point on, any report that uses this connection will send through OAuth2 with no further interaction. The refresh token typically lasts ~90 days of inactivity (Microsoft default; shorter under Conditional Access). If it expires, the next send fails with a clear invalid_grant error and you simply click Sign in with Microsoft again.

Other Providers

The same connection screen also supports:

• Google / Gmail — pick Google as provider, enter your Google Cloud OAuth client ID, and sign in. Useful for Workspace mailboxes and personal Gmail.
• Generic OAuth2 — for any provider that speaks standard OAuth2 + SMTP XOAUTH2 (e.g. Yahoo, custom identity providers). You supply the authorize URL, token URL, and scope manually.

The Microsoft path is the most polished today; the Google and Generic paths follow the same UX (provider dropdown → fields → Sign in button → green confirmation).

Headless / Locked-down Installs

The in-app Sign in button needs the host machine to (a) open a system browser and (b) bind a free loopback port. On servers without a desktop, or in environments where local antivirus blocks ad-hoc localhost listeners, run the same flow from the DataPallas CLI instead. It runs the identical PKCE flow as the in-app button and writes the result straight into the connection file:

DataPallas system oauth2 sign-in \
    --provider MICROSOFT \
    --tenant-id <your-tenant-id> \
    --client-id <your-client-id> \
    --email-connection-file config/connections/eml-office365.xml

If --email-connection-file is omitted, the CLI prints userEmail and refreshToken to stdout for manual paste into the connection XML.

For Generic OAuth2 providers, also pass --authorize-url, --token-url, and --scope.

Network & Permissions

Windows / local machine

Azure AD (one-time, by tenant admin)

Exchange Online

In short: standard desktop install + tenant admin runs the Azure-side setup once + sending mailbox has SMTP AUTH enabled = users can self-serve OAuth2 sign-in.

Troubleshooting
